Electric
$11,995 2 Passenger, Street Legal LSV with
Color Matched Roof
Bodies $2295 Painted (Club Car DS Models)
Choose from 3 standard colors:
Red - Black - White

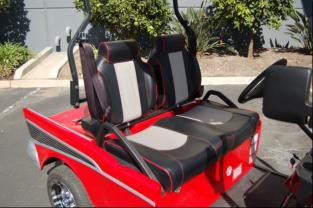

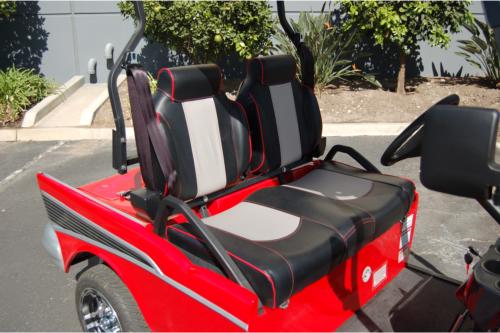

2 Passenger Seating
Powerful AC 17.5hp Drive Motor
SEVCON 3" LCD Display Screen
On Board Delta-Q Charger
Automotive style Master ON/OFF Key
Street Use Ready LSV
Self Diagnostic On Screen Capability
2 Locking Glove Boxes
2 Cup Holders
Adjustable Side Mirrors - Left and Right
Center rear view mirror
R-Flex Plastic Body
Tubular Suspension
Independent Front Suspension
3 Point Seat Belts certified to FMVSS #209
4 Wheel Brakes
Color Matched Roof
Headlights
Dual Tail lights with Brake Lights
High mounted Third Brake light for Safety
Windshield Wiper
Front and Rear Side Reflectors
Horn
Front and Rear Turn Signals
12" Aluminum Wheels
Chrome Lug Nuts
GT Two-tone Upholstery
Standard Options
Sony Xplod AM/FM CD Player with Speakers
Removable Dual Golf Bag Holder Attachment
Golf Ball Washer
Sand and Seed Dispenser
Beverage Cooler
Storage Basket
Car Cover
Some Options Available:
Overall Length 126 Inches
(with Back Step)
Overall Width 42 ½ Inches
Height to top of Windshield 71 Inches
Wheelbase 65 ½ Inches
Ground Clearance 5 Inches
Weight (standard vehicle no batteries) 738 lb.
Weight (Curb, with Batteries) 1,180 lb.
Weight (GVWR) 2,000 lb.
Wheels Front 12”x7”
Wheels Rear 12”x7”
Tire Size Front 215/35 R12
Tire Size Rear 215/35 R12
Brakes Front Hydraulic Disk
Brakes Rear 7” Mechanical Drum Type
Drive Motor Direct Drive 48 Volts
3-phase Industion 17.5 hp peak
Transaxle Double Reduction, high speed gears
Electrical System 48 volts DC
Batteries Six (6) @ 8V each in series = 48V DC
Battery Charger Delta-Q
Speed Controller SEVCON Gen4 @ 450 Amp Continuous
Steering Rack and Pinion
Chassis Aluminum I-Beam
Body Finish Automotive Paint
Interior Material Marine-type Vinyl
Carpet Marine-type Synthetic
Forward Speed >20 MPH and <25 MPH
Braking Distance
(from 20 mph) <20 feet
Standard Seating Capacity 2
SPECS

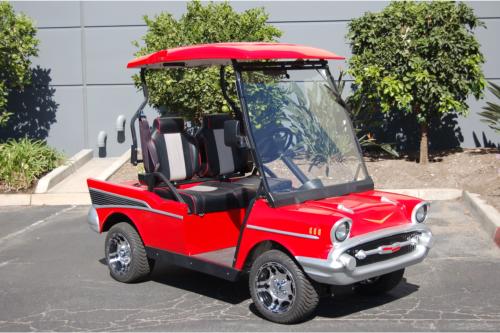

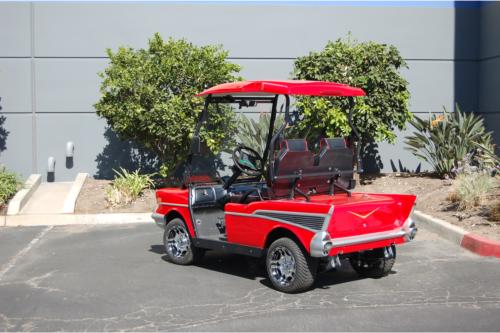

57 CHEV Golf Cart
